Home » HIPOWER SYSTEMS » Portable Natural Gas Generators, 25 kW - 1175 kW » HRNG PSI Series - HIPOWER Portable Generator Sets 700kW - 1175kW » HRNG-700 T6
HRNG PSI Series - HIPOWER Portable Generator Sets 700kW - 1175kW print

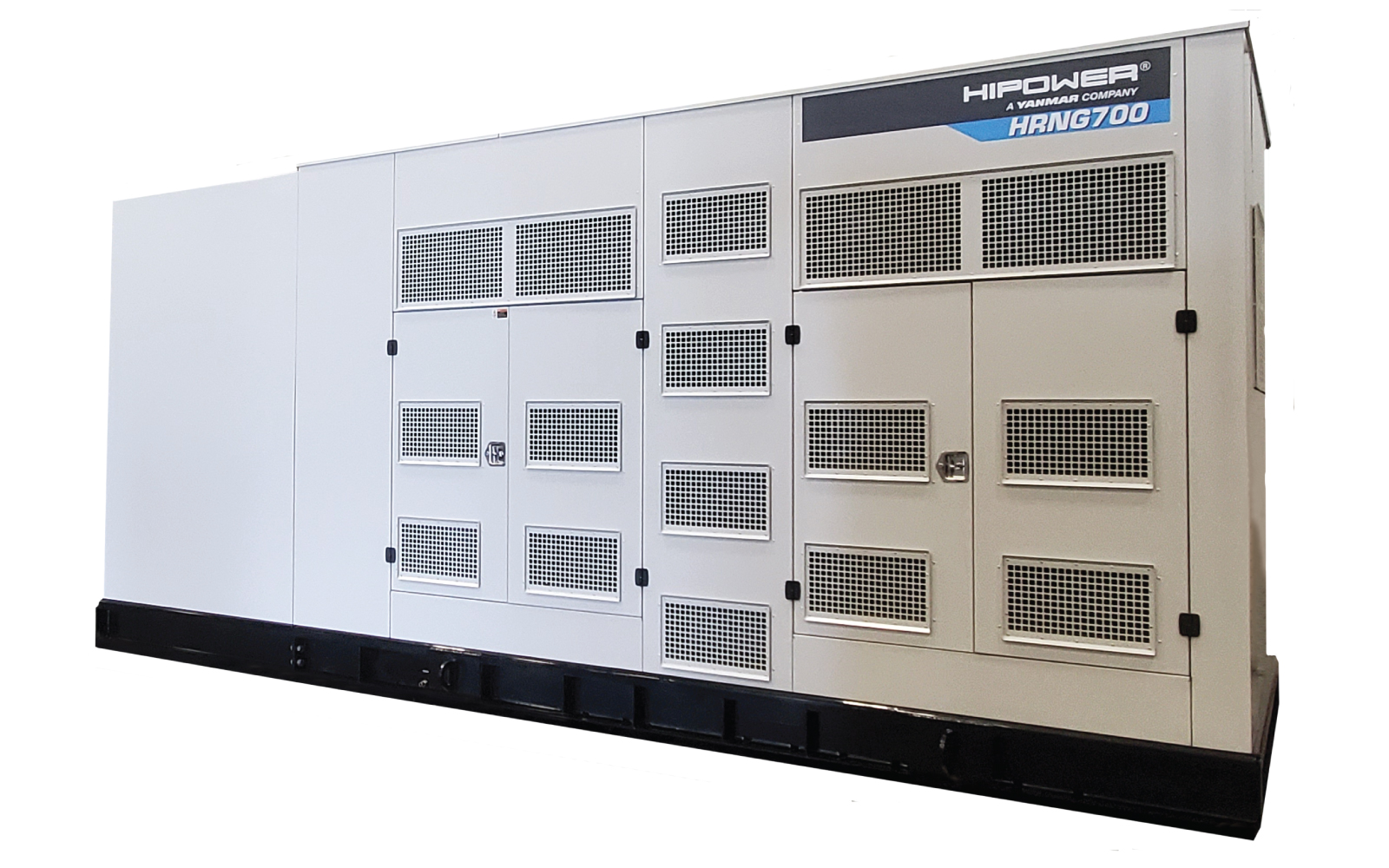

HRNG-700 T6



Information

  • Model: HRNG-700 T6
  • Engine: PSI
  • Standby KW: 700 KW
  • Phase: Three
  • Frequency: 60
Download Spec. Sheet Request More Info

Voltage Options:
Single phase: 120/240V
Three Phase - 120/208, 120/240, 277/480, 600V

Available Options

Starting aids

  • Battery charger:✓
  • Block heater:✓
  • Battery blanket :✓
  • Control panel heater:✓
  • Oil pan heater:✓
  • Heat trace:✓
  • CCV filter heater:✓
  • Cata-dyne heater:✓

Enclosure

  • Heavy duty skid:✓
  • Winterized enclosure:✓
  • Radiator mounted load bank :✓

Fuel system

  • Oil makeup system :✓
  • Gas leak detector:✓
  • Duel fuel system:✓
  • 100 PSI regulator kit:✓
  • Water separator:✓

Generator End

  • Voltage selector switch:✓
  • Distribution panel:✓

Controllers

  • DSE 7310 control panel:✓
  • DSE 8610 control panel (paralleling):✓

Engine

  • Engine Specifications: 1.800 r.p.m.
  • Rated Output: 565kW prp ; 673kW standby
  • Manufacturer: PSI
  • Model: 31.8L
  • Engine Type: 4-stroke Otto Cycle
  • Injection Type: Carburization
  • Aspiration Type: Turbocharged and after-cooled
  • Number of cylinders and arrangement: 12-V
  • Bore and Stroke: 150 x 150 mm
  • Displacement: 31,8 L
  • Cooling System: Liquid (water + 50% glycol)
  • Lube Oil Specifications: API CD/≥CF, SAE 15W40
  • Compression Ratio: 10,5
  • Fuel Consumption ESP: 195,2 Nm3/h
  • Fuel Consumption 100% PRP: 169,9 Nm3/h
  • Fuel Consumption 75 % PRP: 132,5 Nm3/h
  • Fuel Consumption 50 % PRP: 97,6 Nm3/h
  • Fuel Consumption 25 % PRP: 60,2 Nm3/h
  • Total oil capacity: 122 L
  • Total coolant capacity: 176,2 L
  • Governor Type: Electrical
  • Air Filter Type: Dry

Alternator

  • Generator: STAMFORD
  • Model: HCI534F
  • Poles: 4
  • Mounting type: S-1 14"
  • Insulation: H class
  • Enclosure (according IEC-34-5): IP23
  • Exciter system: Self-excited, brushless
  • Voltage regulator: A.V.R. (Electronic)
  • Bracket type: Single bearing
  • Coupling system: Flexible disc
  • Coating type: Standard (Vacuum impregnation)

Installation

  • - EXHAUST SYSTEM.

  • Maximum exhaust temperature: 1182.2 ºF
  • Exhaust Gas Flow: 4,061 cfm
  • Maximum allowed back pressure: 10,2 kPa

  • - NECESSARY AMOUNT OF AIR.

  • Intake air flow: 1,307 scfm
  • Cooling Air Flow: 65,092 scfm
  • Alternator fan air flow: 2,780 scfm

  • - STARTING SYSTEM.

  • Starting power: 11.7 kW
  • Starting power: 15.69 HP
  • Auxiliary Voltage: 24 Vdc

  • - FUEL SYSTEM

  • Fuel Oil Specifications: Natural Gas

Dimensions

  • - DIMENSIONS.

  • Length: 240.16 in
  • Height: 112 in
  • Width: 101.97 in
  • Maximum shipping volume: 1584.57 ft3
  • Dry weight: 18,499 Lbs
  • Sound pressure level: 82 ± 2,4 dB(A)@7m
