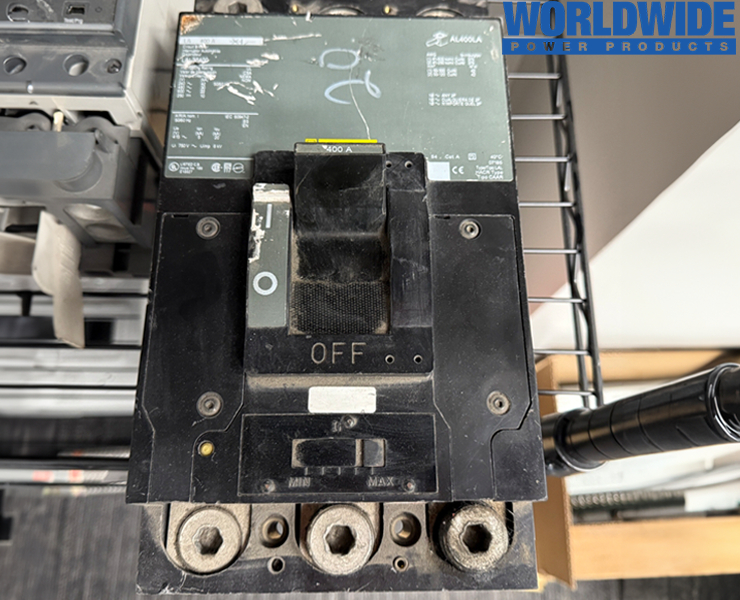

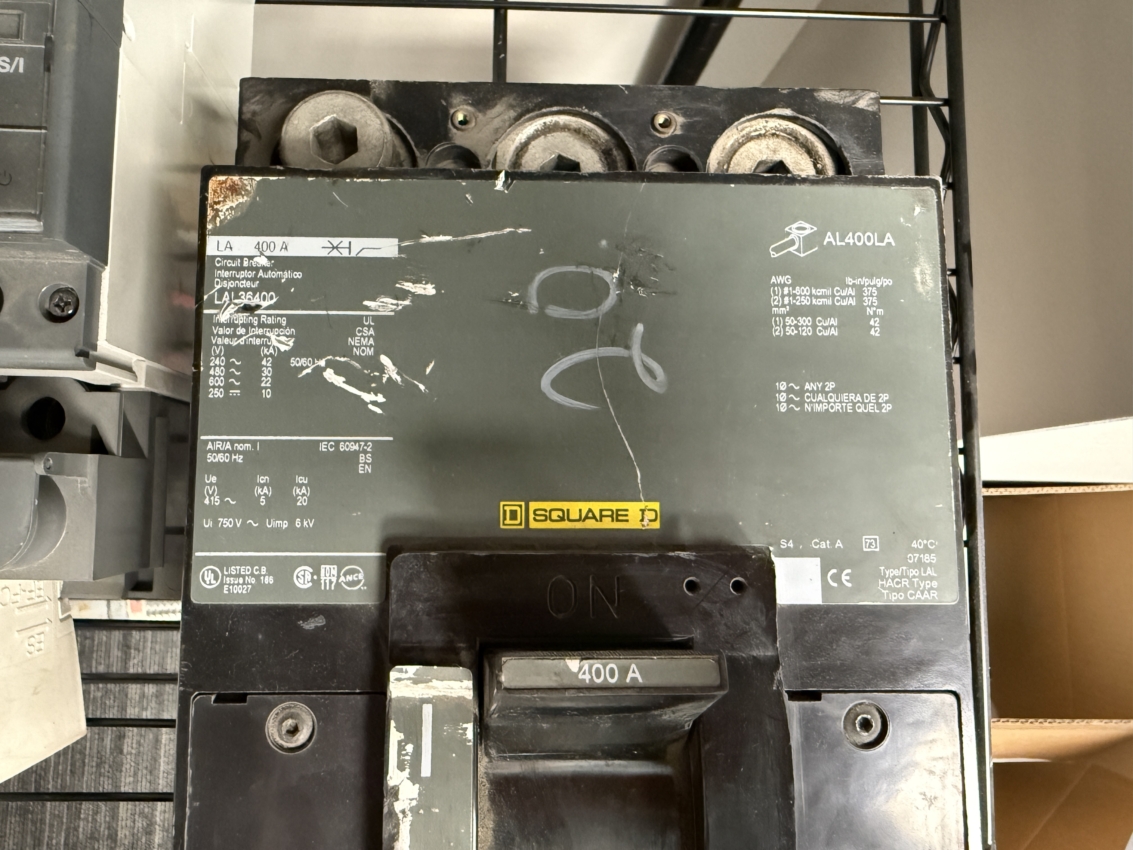

Square D LA36400 – 400A Molded Case Breaker

  • WPP Item #: 25088

Breaker

  • Manufacturer: Square D
  • Ampere Size: 400

Additional Information

  • Length (in): 6
  • Width (in): 4
  • Height (in): 13
  • Weight (lb): 25
  • Brand: Square D (Schneider Electric)
  • Series: LA / LAL
  • Model / Catalog Number: LA36400
  • Frame Size: LA400
  • Poles: 3
  • Rated Current (In): 400A
  • Interrupting Ratings (UL/CSA/NEMA):
  • 240V AC: 65 kA
  • 480V AC: 22 kA
  • 600V AC: 18 kA
  • 250V DC: 10 kA
  • IEC Ratings:
  • Ue: 415V, Icu: 20 kA, Ics: 5 kA
  • Ui: 750V, Uimp: 6 kV
  • Frequency: 50/60 Hz
  • Wire Range & Torque:
  • #1–600 kcmil Cu/Al: 375 lb-in
  • #1–250 kcmil Cu/Al: 375 lb-in
  • (1) 95–300 mm² Cu/Al: 47 N·m
  • (2) 50–120 mm² Cu/Al: 42 N·m
  • Standards Compliance: UL 489, CSA C22.2, IEC 60947-2
  • Temperature Rating: 40°C
  • HACR Type: Yes

Documents
