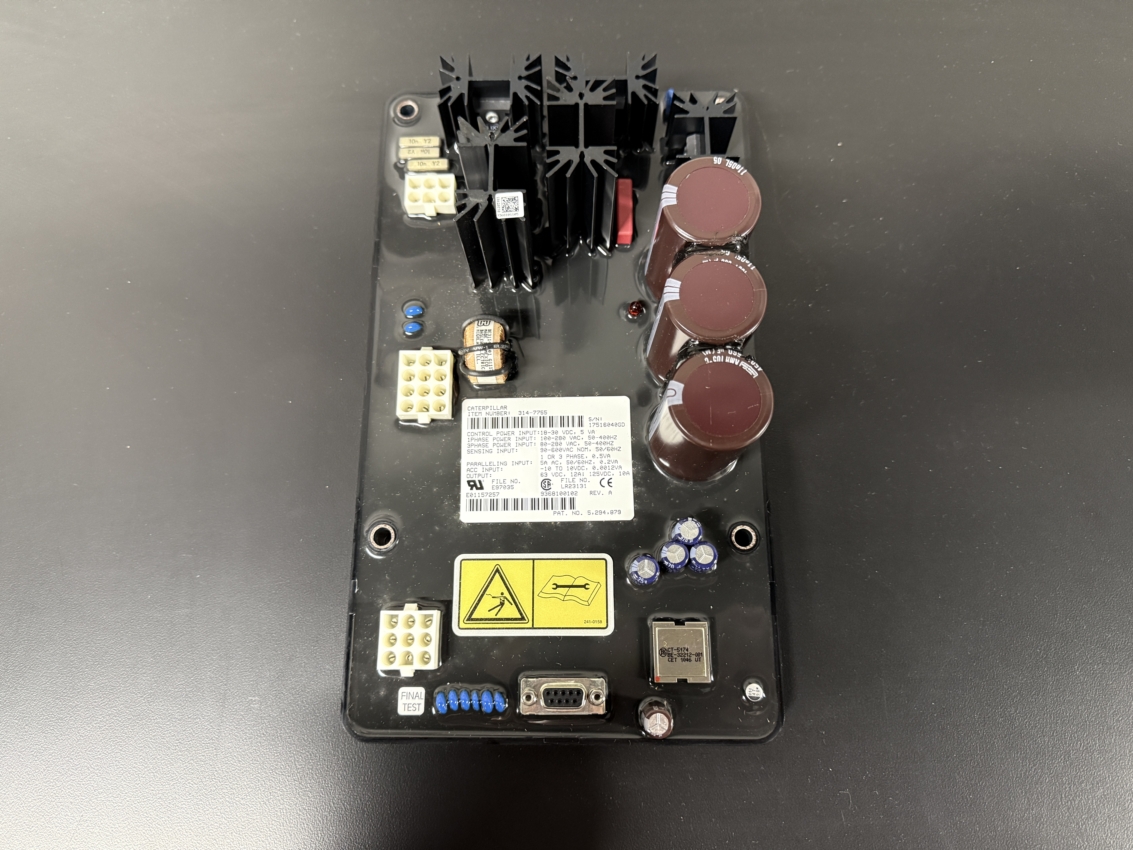

Caterpillar 314-7755 Voltage Regulator

  • WPP Item #: 9673
$1,857 Condition: New

Additional Information

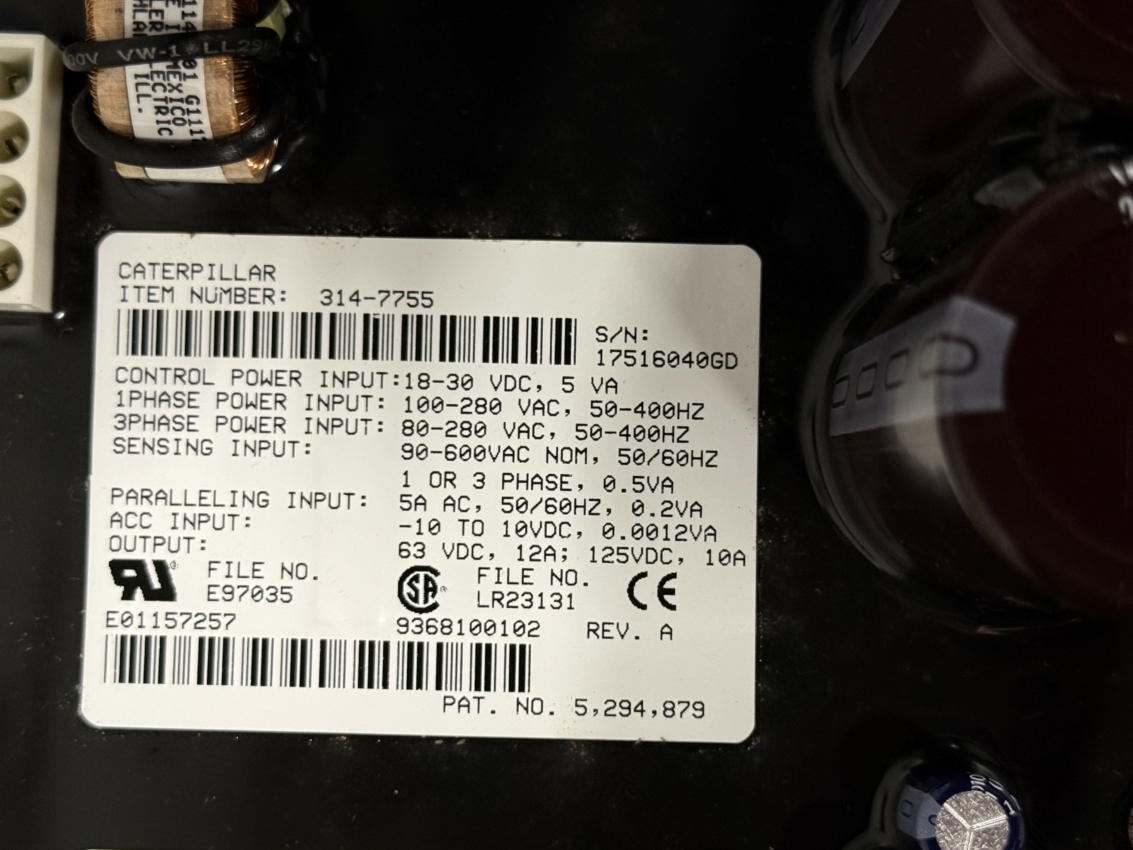

  • CATERPILLAR 314-7755
  • SERIAL NO: 17516040GD
  • Control Power Input:
  • 18–30 VDC, 5 VA
  • 1-Phase Power Input:
  • 100–280 VAC, 50–400 Hz
  • 3-Phase Power Input:
  • 80–280 VAC, 50–400 Hz
  • Sensing Input:
  • 90–600 VAC NOM, 50/60 Hz
  • Paralleling Input:
  • 1 or 3 Phase, 0.5 VA
  • ACC Input:
  • 5A AC, 50/60 Hz, 0.2 VA
  • -10 to 10 VDC, 0.0012 VA
  • Output:
  • 63 VDC, 12A
  • 125 VDC, 10A
  • Certifications:
  • UL Recognized (File No. E97035)
  • CSA Certified (File No. LR23131)
  • CE Marked

Documents

When you choose Worldwide Power Products, you're getting more than just quality equipment - you're getting quality new and used generators and engines when you need it, wherever you are, with prompt, personalized service. With millions of dollars of handpicked power generation equipment in stock, we pride ourselves on having what you need, so you can power on.

< Back to Results
  • WPP Item #: 9673
$1,857 Condition: New

Request a Quote or More Info on the Caterpillar 314-7755 Voltage Regulator
