CAT 1.5MW G3516C Natural Gas Generator Set (2 of 2) - 1500 kW

  • WPP Item #: 24671
Call for pricing Condition: Used Hours (hrs): 164

Engine Information

  • Engine Manufacturer: Caterpillar
  • Engine Model: G3516C
  • Engine S/N: N6R00157
  • Engine Arrangement: 5062891
  • Engine RPM: 1800
  • Engine HP: 2175
  • Governor: Electronic
  • Starter: Electric
  • Cooling Method: Radiator
  • Engine Pre-lube: Electric
  • Compression Ratio: 11:3
  • Flywheel Size: SAE00
  • Dual Fuel Capable:
  • Jacket Water Heater:
  • Transmission Oil Cooler:
  • Oil Level Regulator:
  • Explosion Relief Valve:
  • Battery Charger:
  • Battery Rack:
  • Battery Cables:
  • Air Compressor:
  • Emergency Stop:
  • Coolant Level Sensor:
  • Gas Regulator:

Generator End Information

  • Generator Manufacturer: Caterpillar
  • Generator Model: SR4B MV
  • Generator S/N: G3X00423
  • Gen End Arrangement #: 252228
  • kW Rating: 1500
  • kVa Rating: 1875
  • Rating Type: Continuous
  • Voltage: 6600 VAC (480 VAC, 13.2KV, 25kV options available)
  • Power Factor: 0.80
  • Frequency: 60
  • Leads: 6
  • Frame Size: 2750
  • Generator RPM: 1800
  • Bearings: Double Bearing
  • Excitation Type: Permanent Magnet Excitation
  • Temperature Rise: 105C

Generator Package Information

  • Package Manufacturer: Caterpillar
  • Package Model: 1.5MW Power Pac
  • Control Panel: KUHSE
  • Enclosure: Custom Enclosure
  • Enclosure Type: Sound Attenuated Enclosed
  • Paralleling Controls:

Additional Information

  • Manufacture Year: 2019
  • Standby rating = 2000kW
  • Generator set container is 40’ and weighs 83,776 lbs
  • Radiator portion is 20’ and mounts on top of the generator container
  • Transformers available to step down to 480V or up to 13.2 or 25kV
  • Additional warranty options available via Cat ESC (extended service coverage)
  • Hybrid - Natural Gas or LNG
  • Fire suppression system

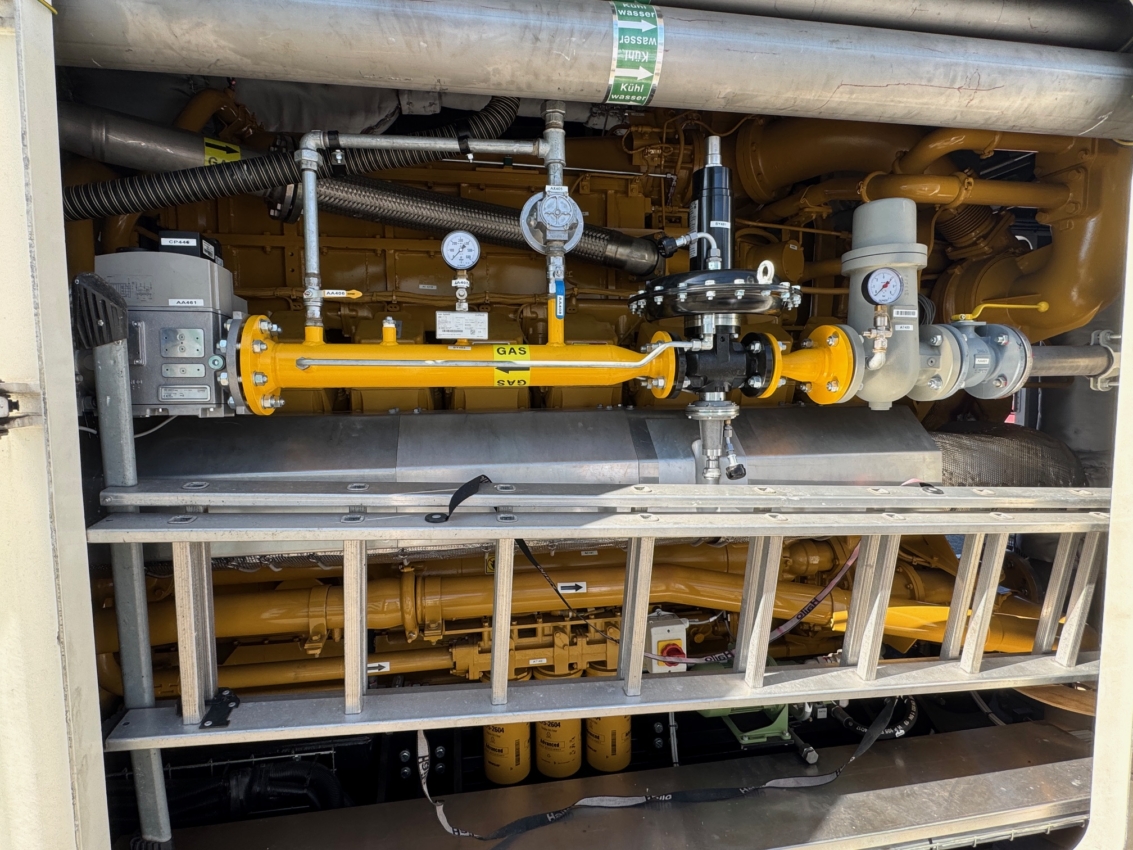

  • Dungs gas regulator system
  • Paralleling capable

Remarks

Extremely well built custom packages with test hours only! Ready to ship! 1 of 2 identical units to make a 3MW Microgrid at either 480V, 6.6kV, 13.2kV, or 25kV
