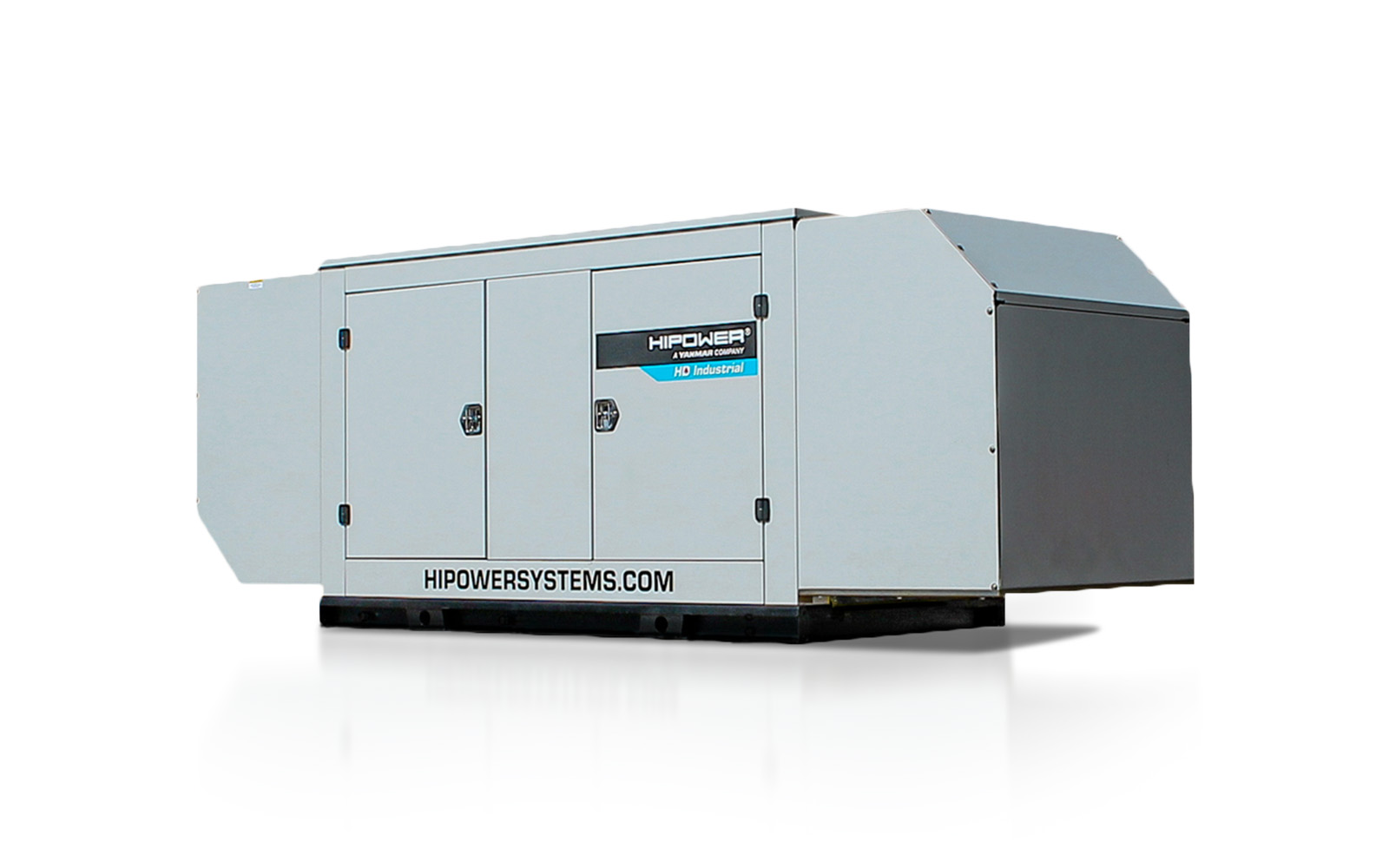

HNI-150



Information

  • Model: HNI-150
  • Engine: PSI
  • Standby KW: 150 KW
  • Phase: Single
  • Frequency: 60
Download Spec. Sheet Request More Info

Voltage Options:
Single phase: 120/240V
Three Phase - 120/208, 120/240, 277/480, 600V

Available Options

Starting aids

  • Battery charger:
  • Block heater:
  • Battery blanket :

Enclosure

  • Open set :
  • SA enclosure :

Generator End

  • Anti condensation heater :
  • PMG :

Controllers

  • DSE 7310 control panel :
  • DES 8610 control panel (paralleling) :
  • Remote annunciator :

Engine

  • Engine Specifications: 1.800 r.p.m.
  • Rated Output: 153,61kW prp
  • Manufacturer: PSI
  • Model: 8.8LT CAC
  • Engine Type: 4-stroke Otto Cycle
  • Injection Type: Carburization
  • Aspiration Type: Turbocharged and after-cooled
  • Number of cylinders and arrangement: 8-V
  • Bore and Stroke: 11,5 x 11,4 mm
  • Displacement: 8,8 L
  • Cooling System: Coolant
  • Lube Oil Specifications: API ≥SH, SAE 10W-30
  • Compression Ratio: 10.1
  • Fuel Consumption 100% PRP: 55,7 Nm3/h
  • Fuel Consumption 75 % PRP: 43,3 Nm3/h
  • Fuel Consumption 50 % PRP: 31,2 Nm3/h
  • Total oil capacity including tubes, filters: 8,5 L
  • Governor Type: Electrical
  • Air Filter Type: Dry

Alternator

  • Generator: STAMFORD
  • Model: UCI274G
  • Poles: 4
  • Connection type (standard): Series
  • Mounting type: S-3 11"1/2
  • Insulation: H class
  • Enclosure (according IEC-34-5): IP23
  • Exciter system: Self-excited, brushless
  • Voltage regulator: A.V.R. (Electronic)
  • Bracket type: Single bearing
  • Coupling system: Flexible disc
  • Coating type: Standard (Vacuum impregnation)

Installation

  • - EXHAUST SYSTEM.

  • Maximum exhaust temperature: 1299.2 ºF
  • Exhaust Gas Flow: 1,063 cfm
  • Maximum allowed back pressure: 10,2 kPa
  • - NECESSARY AMOUNT OF AIR.

  • Alternator fan air flow: 1,307 scfm
  • - STARTING SYSTEM.

  • Auxiliary Voltage: 12 Vdc
  • - FUEL SYSTEM

  • Fuel Oil Specifications: Natural Gas

Dimensions

  • - DIMENSIONS.

  • Length: 133.78 in
  • Height: 60 in
  • Width: 50.28 in
  • Maximum shipping volume: 233.78 ft3
  • Dry weight: 4,350 Lbs
  • Sound pressure level: 78 ± 2,4 dB(A)@7m
